DESCRIPTION
A1A Dock Products, Aluminum Marine Swing Ladders offer sturdy construction that are easy to swing up and out of the water for storage in place.
- Available in standard (2") or wide (3.5") steps
- Ladder can be stored up and out of the water
- Uses a quick release pin to hold ladder in place
- Pivots on a stainless steel bolt with self lubricating brass bushings
- Makes climbing in and out of the water a breeze
- The variety of lengths will accommodate most installations
- 14 inch diameter curved handrail
- Available in 3, 4, 5, 6, and 7 steps
- 500 lb capacity
- Ships flat in three pieces with SS screws to affix hoop handles in place

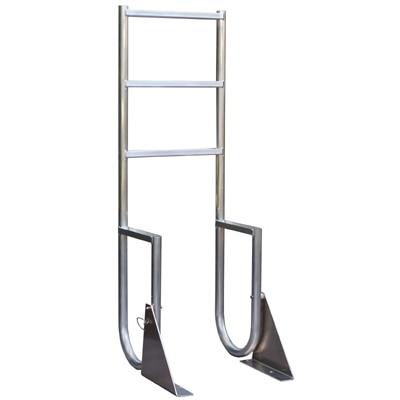

3 Step Model Shown in Photo
The sturdy, space-saving design of our aluminum ladders make them a perfect choice for getting in and out of the water.
Constructed from 6063 T5 Marine Grade Aluminum, 1 1/4 inch and 1 1/2 inch pipe are tig welded for maximum strength. The ladder rungs are extruded with grooves to provide sure footing and reduce slippage. The ladders are ideal for fresh and salt-water applications and can be used on swim floats, docks, and seawalls.
DOCK LADDER INSTALLATION
A1A Dock Ladders will accommodate up to ½” hardware for mounting to a dock, seawall or bulkhead. There are several methods to fasten a ladder. Wood and Composite Docks may be lag bolted into the stringers under the dock and/or thru bolted to an additional piece of wood or plate under the dock for support. For Concrete applications, lag and shield, wedge anchors and/or Large Diameter Tapcons may be used. Your particular application may vary and require additional hardware, supports and bracing.
SPECS
RELATED ITEMS
PRODUCT REVIEWS
PRODUCT FAQs
SHIPPING & RETURNS
Warranty:
All Ladders have a Four (4) year Structural Warranty.
Return:
- Restocking charge will apply at a minimum of 25% for all product returned.
- All Returns must be returned within 30 days of receipt of the items.
- Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval.
- Please contact Go2marine LFS Marine and Outdoor for Manufacture Defects, Returns and help with Warranties.
