Series 27 Battery Box, Inside Dims w/ Lid: 13-7/8" L x 7-1/4" W x 10-1/2" H

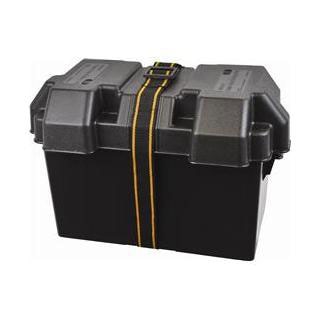

Attwood Battery Box With Strap And Mounting Hardware

Attwood vented battery boxes meet ABYC Standard E-10 and US Coast Guard Specification Number 183.420 as an OEM-installed battery hold down system. Features polypropylene construction for total acid resistance. The hold-down straps resist 350 lbs. of force, nearly four times the USCG requirement. Battery boxes are drop tested in temperatures ranging from -20° F to +120° F. Attwood, Power Guard Battery Box-Blk-27M. New larger capacity! Vented black battery box for Series 27 batteries. (10-1/2" maximum height).

• Battery boxes meet ABYC Standard E-10 and U.S. Coast Guard Specification Number 183.420 as an OEM-installed battery hold-down system
• Polypropylene construction for total acid resistance
• Hold-down straps resist 350 pounds of force, nearly four times the USCG requirement
• Battery Boxes are drop tested in temperatures ranging from -20 Deg. F to +120 Deg. F
• Mounting hardware is included
• 4 cable openings, enlarged to.55" diameter
• Larger handles with rolled edges
• Instructions molded inside cover

Dimensions:

9067-1 (Series 27 Batteries)

• Inside Dimensions w/ Lid: 13-7/8" L x 7-1/4" W x 10-1/2" H
• Outside Dimensions w/ Lid: 16-7/8" L x 9-5/8" W x 10-7/8" H
