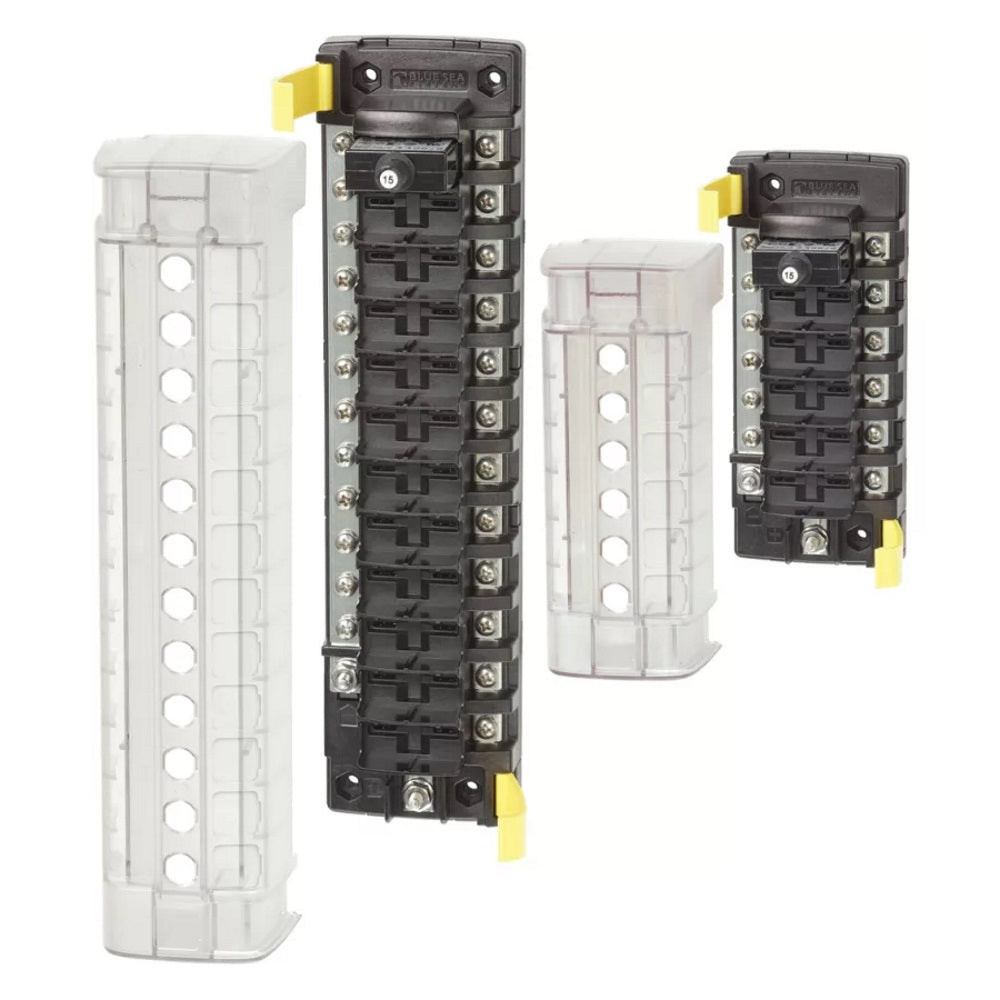

Blue Sea Circuit Breaker Block

Mfr: Blue Sea Systems
$48.20 to $108.96
QuantityPrice
1 Review
Back
$48.20 to $108.96
QuantityPrice

DESCRIPTION

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Features:
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels

SPECS

Item #
MPN
Circuits
Max. Amp
Max. Volt
Mounting
Source
Min/Max Operating Temp.
Screw Terminal Type
Height
Blue Seas Circuit Breaker Block
Item #:543653-6-Common
MPN:5052
Circuits: 6
Max. Amp: 32A (per circuit), 40A (per jumped circuit group)
Max. Volt: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Common Source
Min/Max Operating Temp.: -10°C, 60°C
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69" (169.93 mm)
Blue Seas Circuit Breaker Block
Item #:543653-6-Independent
MPN:5050
Circuits: 6
Max. Amp: 32A (per circuit), 40A (per jumped circuit group)
Max. Volt: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent Source
Min/Max Operating Temp.: -10°C, 60°C
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69" (169.93 mm)
Blue Seas Circuit Breaker Block
Item #:543653-12-Common
MPN:5054
Circuits: 12
Max. Amp: 32A (per circuit), 100A (per block)
Max. Volt: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Common
Min/Max Operating Temp.: -10°C, 60°C
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 11.19" (284.23 mm)
Blue Seas Circuit Breaker Block
Item #:543653-12-Independent
MPN:5051
Circuits: 12
Max. Amp: 32A (per circuit), 100A (per block)
Max. Volt: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent Source
Min/Max Operating Temp.: -10°C, 60°C
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 11.19" (284.23 mm)
