Brass Marine Bearings for Shafts

Mfr: Morse Marine Bearings
$89.33 to $330.61
QuantityPrice

1 Review
Back
$89.33 to $330.61
QuantityPrice

DESCRIPTION

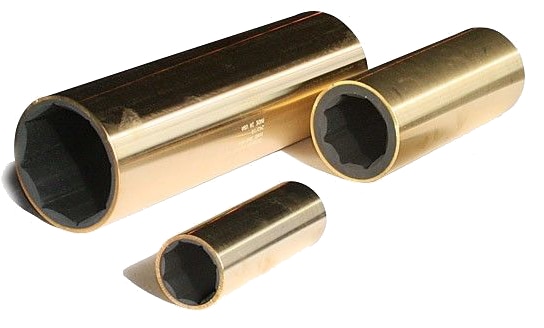

Pollution-Free Naval Brass Marine Bearings
These clean, brass sleeve bearings have an oil resistant rubber inner shaft cushion. These Morse bearings install in minutes and provide years of service. All Morse bearings are engineered to meet the toughest service requirements in corrosive and abrasive marine or industrial applications. The fluted rubber bearing surface will outlast hard surface bearings 10 times over. All materials meet U.S. Navy specs MIL-B-17901A CLII.

Bearing Selection
Normal design practice is to select a bearing with a length equal to 4 times the shaft diameter but it may be acceptable to deviate from this rule when application load requirements permit the use of shorter bearing lengths.

Loading Capability is determined by Multiplying bearing area x 35 psi. where Bearing Area = Bearing I.D. (shaft diameter) x bearing length

Example: (using RAY bearing)

  • Diameter = Shaft Diameter
  • 3" shaft dia. x 12" length
  • 36 sq. Inch bearing area x 35 psi
  • 1,260 lbs. Is bearing load capacity
* Slimline Bearing

SPECS

Item #
MPN
Shaft
Outside Diameter
Length
Metal Wall Thickness
Johnson Code
BF Goodrich Code
Brass Bearing, 1-1/2" x 2" x 6"
Item #:533802-1-1/2"-6in-2"
MPN:FLATFISH
Shaft: 1-1/2" dia.
Outside Diameter: 2"
Length: 6"
Metal Wall Thickness: 1/8"
Johnson Code: BOSS
BF Goodrich Code: -
Brass Bearing, 2-3/4" x 3-3/8" x 11"
Item #:533802-2-3/4"-11in-3-3/8"
MPN:PICUDA
Shaft: 2-3/4" dia.
Outside Diameter: 3-3/8"
Length: 11"
Metal Wall Thickness: 1/8"
Johnson Code: -
BF Goodrich Code: -
Brass Bearing, 2-1/4" x 3-1/8" x 9"
Item #:533802-2-1/4"-9in-3-1/8"
MPN:MINNOW
Shaft: 2-1/4" dia.
Outside Diameter: 3-1/8"
Length: 9"
Metal Wall Thickness: 1/8"
Johnson Code: CART*
BF Goodrich Code: Kumiss
Brass Bearing, 2-1/4" x 2-15/16" x 9"
Item #:533802-2-1/4"-9in-2-15/16"
MPN:MARLIN
Shaft: 2-1/4" dia.
Outside Diameter: 2-15/16"
Length: 9"
Metal Wall Thickness: 1/8"
Johnson Code: CARE
BF Goodrich Code: Knoll
Brass Bearing, 2-1/2" x 3-3/8" x 10"
Item #:533802-2-1/2"-10in-3-3/8"
MPN:PERCH
Shaft: 2-1/2" dia.
Outside Diameter: 3-3/8"
Length: 10"
Metal Wall Thickness: 1/8"
Johnson Code: DANE
BF Goodrich Code: Navy
Brass Bearing, 2-1/2" x 3-1/8" x 10"
Item #:533802-2-1/2"-10in-3-1/8"
MPN:MUSKY
Shaft: 2-1/2" dia.
Outside Diameter: 3-1/8"
Length: 10"
Metal Wall Thickness: 1/8"
Johnson Code: CORD
BF Goodrich Code: Naked
Brass Bearing, 1-3/4" x 2-5/8" x 7"
Item #:533802-1-3/4"-7in-2-5/8"
MPN:HADDO
Shaft: 1-3/4" dia.
Outside Diameter: 2-5/8"
Length: 7"
Metal Wall Thickness: 1/8"
Johnson Code: BUCK*
BF Goodrich Code: Kite
Brass Bearing, 1-3/4" x 2-3/8" x 7"
Item #:533802-1-3/4"-7in-2-3/8"
MPN:GROUPER
Shaft: 1-3/4" dia.
Outside Diameter: 2-3/8"
Length: 7"
Metal Wall Thickness: 1/8"
Johnson Code: BROW
BF Goodrich Code: Kip
Brass Bearing, 1-1/4" x 2" x 5"
Item #:533802-1-1/4"-5in-2"
MPN:COD
Shaft: 1-1/4" dia.
Outside Diameter: 2"
Length: 5"
Metal Wall Thickness: 1/8'
Johnson Code: BITE
BF Goodrich Code: na
Brass Bearing, 3" x 4" x 12"
Item #:533802-3"-12in-4"
MPN:REDFIN
Shaft: 3" dia.
Outside Diameter: 4"
Length: 12"
Metal Wall Thickness: 1/8"
Johnson Code: DARE*
BF Goodrich Code: Neck
Brass Bearing, 3" x 3-3/4" x 12"
Item #:533802-3"-12in-3-3/4"
MPN:RAY
Shaft: 3" dia.
Outside Diameter: 3-3/4"
Length: 12"
Metal Wall Thickness: 1/8"
Johnson Code: DANE
BF Goodrich Code: Navy
Brass Bearing, 3-1/2" x 4-1/4" x 14"
Item #:533802-3-1/2"-14in-4-1/4"
MPN:SANDFISH
Shaft: 3-1/2" dia.
Outside Diameter: 4-1/4"
Length: 14"
Metal Wall Thickness: 1/8"
Johnson Code: DINE
BF Goodrich Code: Negro
Brass Bearing, 3-1/2" x 4-1/2" x 14"
Item #:533802-3-1/2"-14in-4-1/2"
MPN:SAWFISH
Shaft: 3-1/2" dia.
Outside Diameter: 4-1/2"
Length: 14"
Metal Wall Thickness: 1/8"
Johnson Code: DOCK
BF Goodrich Code: Neighbor
Brass Bearing, 2" x 3" x 8"
Item #:533802-2"-8in-3"
MPN:KINGFISH
Shaft: 2" dia.
Outside Diameter: 3"
Length: 8"
Metal Wall Thickness: 1/8"
Johnson Code: CALM*
BF Goodrich Code: Knave
Brass Bearing, 2" x 2-5/8" x 8"
Item #:533802-2"-8in-2-5/8"
MPN:HERRING
Shaft: 2" dia.
Outside Diameter: 2-5/8"
Length: 8"
Metal Wall Thickness: 1/8"
Johnson Code: CALL
BF Goodrich Code: Kith
Brass Marine Bearings for Shafts, 1" X 2" x 4"
Item #:533802-4in-1"-2"
MPN:BULLHEAD
Shaft:
Outside Diameter:
Length:
Metal Wall Thickness:
Johnson Code:
BF Goodrich Code:
