Bronze Rudder Port for Inside Mount with Square Flange Mount

Mfr: Buck Algonquin / Hydrasearch
$170.39 to $341.83
QuantityPrice

2 Reviews
Back
$170.39 to $341.83
QuantityPrice

DESCRIPTION

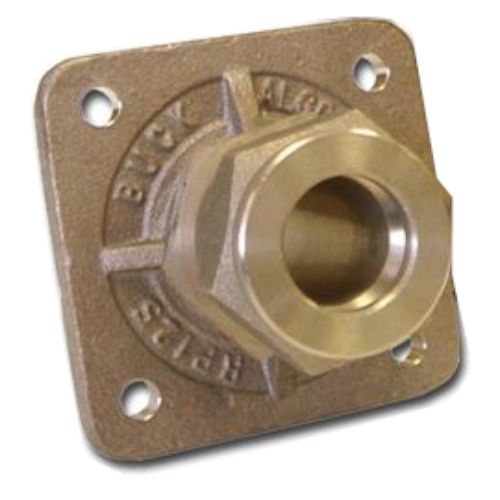

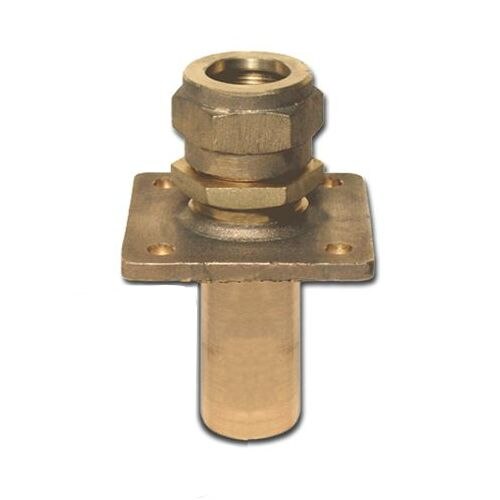

Inside Mount Bronze Rudder Ports with square mounting flanges for secure attachment inside your boat. Buck Algonquin bronze rudder ports will make a tight seal and fit on your rudder shaft.

  • Size = Shaft Size
  • Length = Length Under Flange
  • Inside mount applications
  • Square base set at 90 Deg. to the post/shaft
  • Cast bronze
  • Precision machined
  • Includes packing nut and jam nut
Shaft Packing material is not included allowing boaters to select their choice of or packing.

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling. For more information, go to www.P65Warnings.ca.gov.

SPECS

Item #
MPN
Shaft Size
Packing Size
Length Under Flange
Flange Size, Sq.
Bolthole C to C
Bolt Size
Rudder Port, Square Flange Inside Mount Bronze, 1-1/4" x 3-1/2"
Item #:531439-3-1/2"-1-1/4"
MPN:2902
Shaft Size: 1-1/4"
Packing Size: 1/4"
Length Under Flange: 3-1/2"
Flange Size, Sq.: 4"
Bolthole C to C: 2-7/8"
Bolt Size: 3/8"
Rudder Port, Square Flange Inside Mount Bronze, 1" Shaft x 4"
Item #:531439-1"-4in
MPN:00RP100
Shaft Size: 1"
Packing Size: 1/4"
Length Under Flange: 4"
Flange Size, Sq.: 3-7/8"
Bolthole C to C: 2-3/4"
Bolt Size: 3/8"
Rudder Port, Square Flange Inside Mount Bronze, 1" Shaft x 2-1/8"
Item #:531439-1"-2-1/8in
MPN:00RP100L
Shaft Size: 1"
Packing Size: 1/4"
Length Under Flange: 2-1/8"
Flange Size, Sq.: 3-1/2"
Bolthole C to C: 2-3/8"
Bolt Size: 3/8"
Rudder Port, Square Flange Inside Mount Bronze, 1-1/4" x 4"
Item #:531439-1-1/4"-4in
MPN:00RP125
Shaft Size: 1-1/4"
Packing Size: 1/4"
Length Under Flange: 4"
Flange Size, Sq.: 4-1/4"
Bolthole C to C: 3-1/16"
Bolt Size: 3/8"

RELATED ITEMS

PRODUCT REVIEWS

Back

Ratings & Reviews

2 reviews

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
Write a Review

Fast shipping

by

Good service

Was this review helpful?

Rudder port

by

Ordered this rudder port , dimensions were as posted , quality was excellent, shipping delivery was on time . Price was very fair . Excellent source.

Was this review helpful?

PRODUCT FAQs

SHIPPING & RETURNS

Warranty:

Hydrasearch Company warrants the products described herein and manufactured by Hydrasearch to be free from defects in material and workmanship for a period of one (1) year from the date of shipment under normal use and service. Shipping of the product back to the manufacturer for warranty is the customers responsibility to pay.

Return:

  • Restocking charge will apply at a minimum of 25% for all product returned.
  • All Returns must be returned within 30 days of receipt of the items.
  • Some products are non-returnable, please contact us for further details.
  • Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval.
  • Please contact Go2marine LFS Marine and Outdoor for Manufacture Defects, Returns and help with Warranties.
