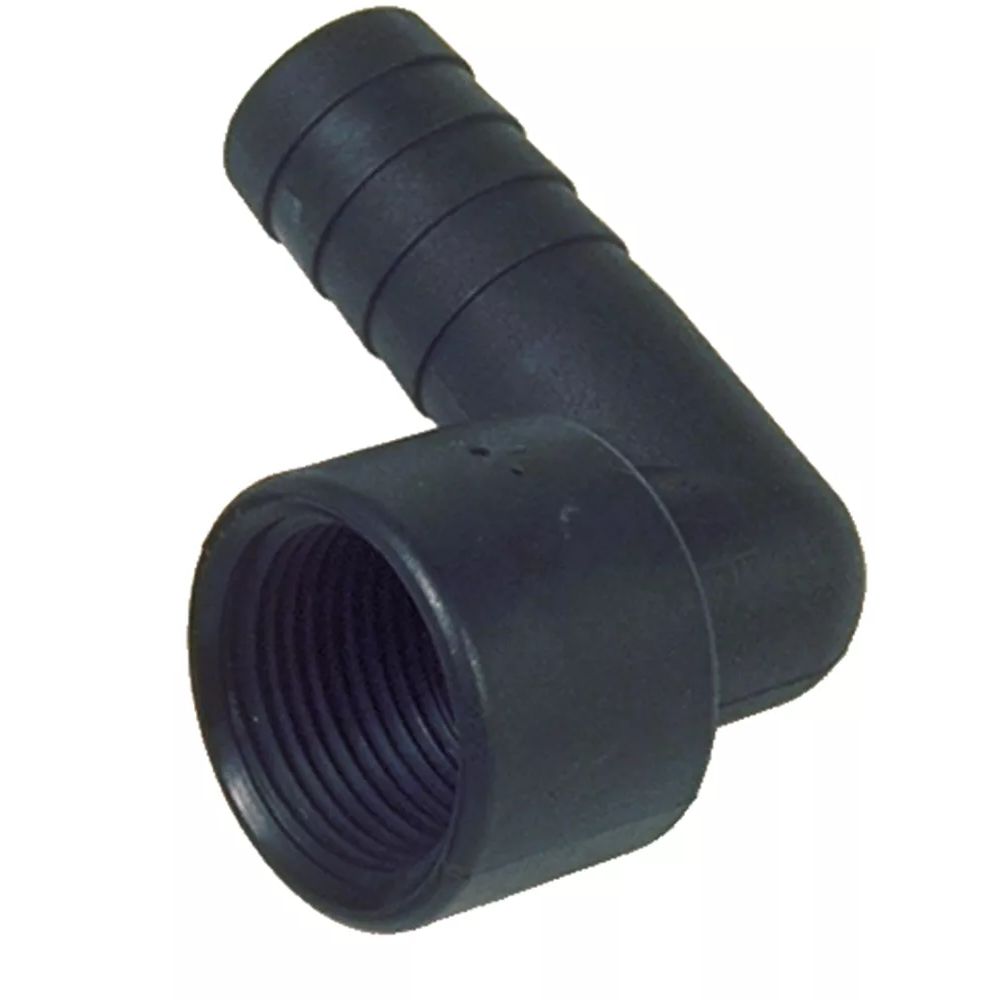

Forespar HECF Marelon Elbows Female NPT to Hose Barb, 90 Deg.

$4.15 to $15.50
QuantityPrice
$4.15 to $15.50
QuantityPrice

DESCRIPTION

Forespar Marelon elbows for boat and other marine plumbing needs. These female NPT to Hose Barb elbows have a full 90° bend.

  • Molded from high-strength glass-reinforced Marelon
  • These barbs are sized by NTP to Hose barb

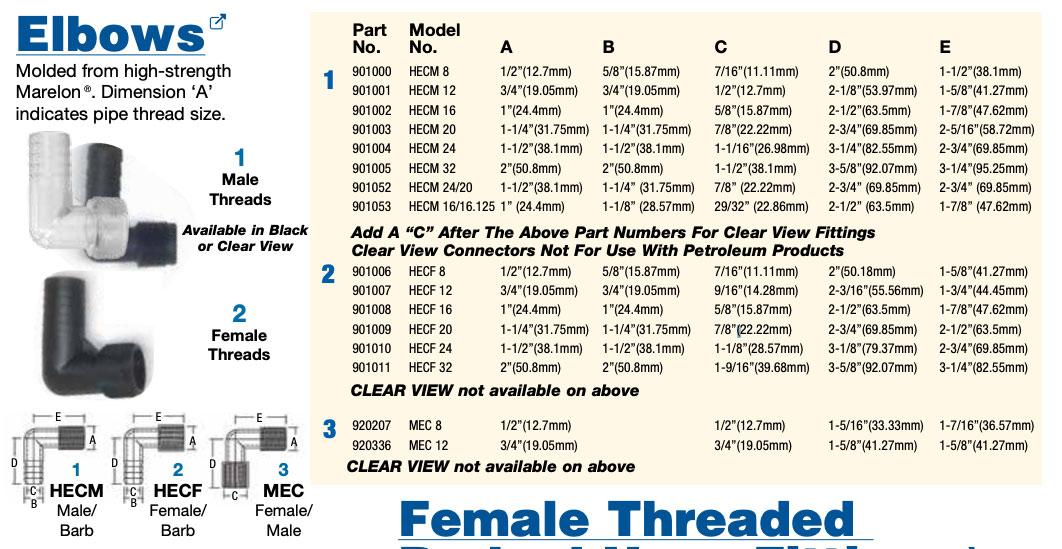

Key:
  • A = Female NPT
  • B = Hose Barb
  • C= Through Tube Diameter
  • D = Center tube to hose barb
  • E = Center Tube to NPT End


SPECS

Item #
MPN
Model
Female NPT size
Hose barb
Through Tube diameter
Center tube to hose barb end
Center tube to NPT End
Forespar Marelon Elbow, HECF 24, 1-1/2"
Item #:531576-1-1/2"
MPN:901010
Model: HECF 24
Female NPT size: 1-1/2" Female NPT
Hose barb: 1-1/2"
Through Tube diameter: 1-1/8"
Center tube to hose barb end: 3-1/8"
Center tube to NPT End: 2-3/4"
Forespar Marelon Elbow, HECF 12, 3/4"
Item #:531576-3/4"
MPN:901007
Model: HECF 12
Female NPT size: 3/4" Female NPT
Hose barb: 3/4"
Through Tube diameter: 9/16"
Center tube to hose barb end: 2-3/16"
Center tube to NPT End: 1-3/4"
Forespar Marelon Elbow, HECF 32, 2"
Item #:531576-2"
MPN:901011
Model: HECF 32
Female NPT size: 2" Female NPT
Hose barb: 2"
Through Tube diameter: 1-9/16"
Center tube to hose barb end: 3-5/8"
Center tube to NPT End: 3-1/4"
Forespar Marelon Elbow, HECF 8, 1/2"
Item #:531576-1/2"
MPN:901006
Model: HECF 8
Female NPT size: 1/2" Female NPT
Hose barb: 5/8"
Through Tube diameter: 7/16"
Center tube to hose barb end: 2"
Center tube to NPT End: 1-5/8"
Forespar Marelon Elbow, HECF 16, 1"
Item #:531576-1"
MPN:901008
Model: HECF 16
Female NPT size: 1" Female NPT
Hose barb: 1"
Through Tube diameter: 5/8"
Center tube to hose barb end: 2-1/2"
Center tube to NPT End: 1-7/8"
Forespar Marelon Elbow, HECF 20, 1-1/4"
Item #:531576-1-1/4"
MPN:901009
Model: HECF 20
Female NPT size: 1-1/4" Female NPT
Hose barb: 1-1/4"
Through Tube diameter: 7/8"
Center tube to hose barb end: 2-3/4"
Center tube to NPT End: 2-1/2"
