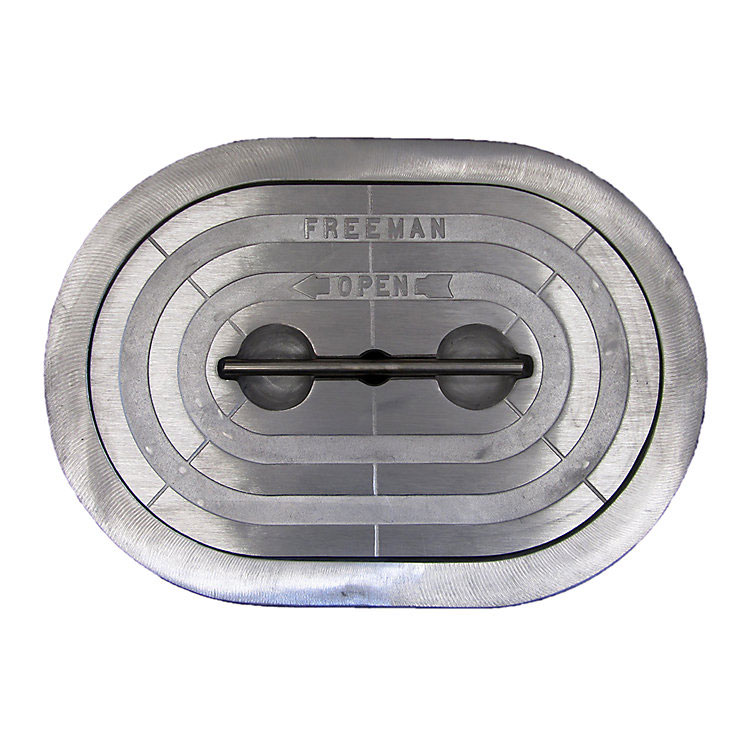

Freeman 15" x 24" Liftout Handle Aluminum Hatch with Steel Deck Ring
$784.74 On Sale
DESCRIPTION
Freeman 15" x 24" Liftout Handle Aluminum Hatch with Steel Deck Ring
p/n 2433-0003
Freeman Marine hatches are specified and used on a wide variety of yachts, fishing boats, tugs, barges, research vessels, offshore tenders, rescue craft and other workboats. The Freeman deck hatch is designed for new boats, for replacing other deck hatches in standard openings, or for improving existing craft. They can be installed in any deck style or material using stock or custom deck rings.
Hatches are ideal for quick-acting access into shaft alleys for fish sorting, void inspection, ventilation and access to valving, piping, wiring, controls, and other areas where seaworthy security is required.
Hatch has a cast aluminum cover, aluminum alloy dogging mechanism, steel deck ring and a stainless steel handle and round bar shaft for trouble free operation.
Features:
Evenly spaced dogging arms exert uniform pull on the cover plate. Handle position shows when dogging arms are engaged or loose
Simply grasp the handle and pull, the shaft slides up into place, and with less than a quarter of a turn the locking mechanism completely disengages
The handle is built in - permanently part of the hatch so it's right where you need it every time
Hatch and handle fit flush with the deck, the handle in recessed lock position
Designed to seal to 30-foot intermittent head, the double-sealing gasket actually seals tighter under pressure
All parts are made of superior materials designed especially for marine and other abusive environments
Specifications:
Rough Opening: 17.4 x 26.5 inches
Cover Overall: 16.3 x 25.9 inches
Clear Opening: 14.8 x 23.7 inches
Handle Style: Integral Topside "T" Handle
Number of Dogs: 4
Weight: 37 lbs
p/n 2433-0003
Freeman Marine hatches are specified and used on a wide variety of yachts, fishing boats, tugs, barges, research vessels, offshore tenders, rescue craft and other workboats. The Freeman deck hatch is designed for new boats, for replacing other deck hatches in standard openings, or for improving existing craft. They can be installed in any deck style or material using stock or custom deck rings.
Hatches are ideal for quick-acting access into shaft alleys for fish sorting, void inspection, ventilation and access to valving, piping, wiring, controls, and other areas where seaworthy security is required.
Hatch has a cast aluminum cover, aluminum alloy dogging mechanism, steel deck ring and a stainless steel handle and round bar shaft for trouble free operation.
Features:
Evenly spaced dogging arms exert uniform pull on the cover plate. Handle position shows when dogging arms are engaged or loose
Simply grasp the handle and pull, the shaft slides up into place, and with less than a quarter of a turn the locking mechanism completely disengages
The handle is built in - permanently part of the hatch so it's right where you need it every time
Hatch and handle fit flush with the deck, the handle in recessed lock position
Designed to seal to 30-foot intermittent head, the double-sealing gasket actually seals tighter under pressure
All parts are made of superior materials designed especially for marine and other abusive environments
Specifications:
Rough Opening: 17.4 x 26.5 inches
Cover Overall: 16.3 x 25.9 inches
Clear Opening: 14.8 x 23.7 inches
Handle Style: Integral Topside "T" Handle
Number of Dogs: 4
Weight: 37 lbs
