Frigoboat, Box-Shaped Evaporators for Air or Water Cooled Condensing Units

Mfr: Frigoboat Marine Refrigeration
$418.59 to $479.95
QuantityPrice

0 No Reviews yet
Back
$418.59 to $479.95
QuantityPrice

DESCRIPTION

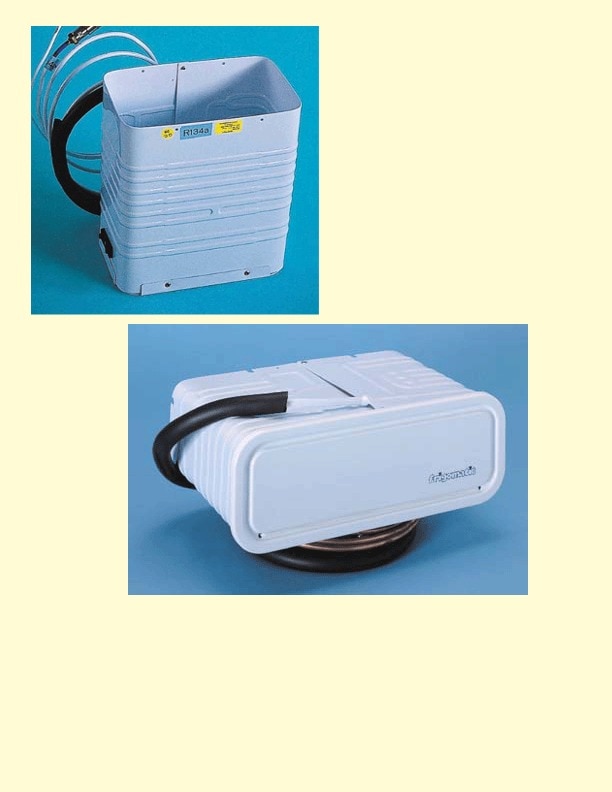

Frigoboat, Box-Shaped Evaporators for Air or Water Cooled Condensing Units

Vertical Bin (B) or Horizontal Box (H) configurations

  • Pre-charged evaporator supplied with tubing and Frigoboat self-sealing couplings
  • Uses non-ozone depleting refrigerant R134a
  • Complete with mounting hardware
  • Epoxy painted with food grade enamel
  • Tubing is all copper for increased corrosion protection
  • Tubing length is 9.2 feet on all evaporators
  • Door Kits available for horizontal mounting (250B becomes 250H, 340B becomes 340H)
  • Pre-charged line-set extensions available separately
  • RequiresCondensing Unit and Thermostat for complete system

SPECS

Item #
MPN
Model
Refrigerator Volume
Freezer Compartment Volume
Height
Length
Width
Frigoboat, 340B, Vertical Bin Evaporator
Item #:533902-Vertical-15cu.ft.
MPN:E50105
Model: 340B
Refrigerator Volume: 15 cu ft
Freezer Compartment Volume: 0.6 cu ft (4-1/2 gallons)
Height: 11-1/2"
Length: 15"
Width: 6"
Frigoboat, 250B, Vertical Bin Evaporator
Item #:533902-Vertical-10cu.ft.
MPN:E53335
Model: 250B
Refrigerator Volume: 10 cu ft
Freezer Compartment Volume: 0.4 cu ft (3-1/8 gallons)
Height: 10-1/4"
Length: 10"
Width: 6-1/2"
Frigoboat, 130H, Horizontal Box Evaporator, with Door
Item #:533902-Horizontal-5cu.ft.
MPN:E50065
Model: 130H
Refrigerator Volume: 5 cu ft
Freezer Compartment Volume: 0.13 cu ft (1 gallon)
Height: 2-3/4"
Length: 8-1/4"
Width: 10"
Frigoboat, 160H, Horizontal Box Evaporator, with Door
Item #:533902-Horizontal-10cu.ft.
MPN:E50090
Model: 160H
Refrigerator Volume: 10 cu ft
Freezer Compartment Volume: 0.28 cu ft (2 gallons)
Height: 4-1/2"
Length: 8-1/2"
Width: 12-1/2"
