DESCRIPTION

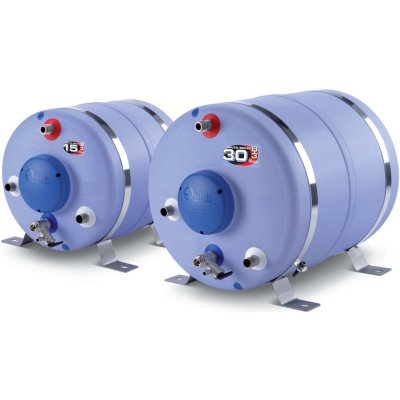

The Nautic Boiler, B3 Marine Water Heaters by Quick feature a composite plastic exterior casing and stainless steel inner tank. The 316L stainless steel brackets for either base (deck) mount or bulkhead mount applications which makes the Quick Water Heaters one of the most versatile on the market. The B3's can me installed at any angle from horizontal to vertical. View the "Technical Information" link below for specific installation instructions.
- 1.5 MM Stainless steel tank
- 316L stainless steel Heat exchanger with wide surface area
- Electric element fitted with an adjustable safety thermostat
- Temperature / pressure relief vavle standar on all water heaters
- Heat exchanger made of stainless steel AISI 316
- Electrical heating element is made of Incoloy steel
- Thermal insulation is high density polyurethane foam injected between the cover and tank
SPECS
Item #
MPN
Capacity
Material
Volts
Watts
Mount
Dimensions
Marine Water Heaters by Quick, Nautic Boiler, B3, Composite
Item #:533541-5.3gal-1200watt-220V
MPN:B32012S
Capacity: 5.3G
Material: SS
Volts: 220V
Watts: 1500W
Mount: Strap
Dimensions:
Quick, Water Heater, Electric, 5.3 Gal 1200W 110V w/ Exchanger
Item #:533541-5.3gal-1200watt-110Volt
MPN:B32012SL
Capacity: 20 L, 5.3 gal
Material: Composite
Volts: 120
Watts: 1200
Mount: Base, Bulkhead
Dimensions:
4 Gallon Marine Water Heater, 120 V, 600 W, B3 15 06SL
Item #:533541-4gal-600watt-110Volt
MPN:B3 15 06SL
Capacity: 15 L, 4 gal
Material: Composite
Volts: 120
Watts: 600
Mount: Base, Bulkhead
Dimensions:
Quick, Water Heater, Electric, 6.6 Gal 600W 110V w/ Exchanger
Item #:533541-6.6gal-600watt-110Volt
MPN:B3 25 06SL
Capacity: 25 L, 6.6 gal
Material: Composite
Volts: 120
Watts: 600
Mount: Base, Bulkhead
Dimensions:
21.1 Gallon Marine Water Heater, 120 V, 1200 W, B3 80 12SL
Item #:533541-21.1gal-1200watt-110Volt
MPN:B38012SL
Capacity: 80 L, 21.1 gal
Material: Composite
Volts: 120
Watts: 1200
Mount: Base, Bulkhead
Dimensions:
15.8 Gallon Marine Water Heater, 120 V, 600 W, B3 60 06SL
Item #:533541-15.8gal-600watt-110Volt
MPN:B3 60 06SL
Capacity: 60 L, 15.8 gal
Material: Composite
Volts: 120
Watts: 600
Mount: Base, Bulkhead
Dimensions:
10.6 Gallon Marine Water Heater, 120 V, 600 W, B3 40 06SL
Item #:533541-10.6gal-600watt-110Volt
MPN:B3 40 06SL
Capacity: 40 L, 10.6 gal
Material: Composite
Volts: 120
Watts: 600
Mount: Base, Bulkhead
Dimensions:
10.6 Gallon Marine Water Heater, 120 V, 1200 W, B3 40 12SL
Item #:533541-10.6gal-1200watt-110Volt
MPN:B34012SL
Capacity: 40 L, 10.6 gal
Material: Composite
Volts: 120
Watts: 1200
Mount: Base, Bulkhead
Dimensions:
15.8 Gallon Marine Water Heater, 120 V, 1200 W, B3 60 12SL
Item #:533541-15.8gal-1200watt-110Volt
MPN:B36012SL
Capacity: 60 L, 15.8 gal
Material: Composite
Volts: 120
Watts: 1200
Mount: Base, Bulkhead
Dimensions:
7.9 Gallon Marine Water Heater, 120 V, 600 W, B3 30 06SL
Item #:533541-7.9gal-600watt-110Volt
MPN:B3 30 06SL
Capacity: 30 L, 7.9 gal
Material: Composite
Volts: 120
Watts: 600
Mount: Base, Bulkhead
Dimensions:
7.9 Gallon Marine Water Heater, 120 V, 1200 W, B3 30 12SL
Item #:533541-7.9gal-1200watt-110Volt
MPN:B33012SL
Capacity: 30 L, 7.9 gal
Material: Composite
Volts: 120
Watts: 1200
Mount: Base, Bulkhead
Dimensions:
Marine Water Heaters by Quick, Nautic Boiler, B3, Composite, 60L , 1200 Watt, 220 Volt
Item #:533541-15.8gal-1200watt-220V
MPN:B38012S
Capacity:
Material:
Volts:
Watts:
Mount:
Dimensions: See FAQ area
6.6 Gallon Marine Water Heater, 120 V, 1200 W, B3 25 12SL
Item #:533541-6.6gal-1200watt-110Volt
MPN:B32512SL
Capacity: 25 L, 6.6 gal
Material: Composite
Volts: 120
Watts: 1200
Mount: Base, Bulkhead
Dimensions:
RELATED ITEMS
PRODUCT REVIEWS
PRODUCT FAQs

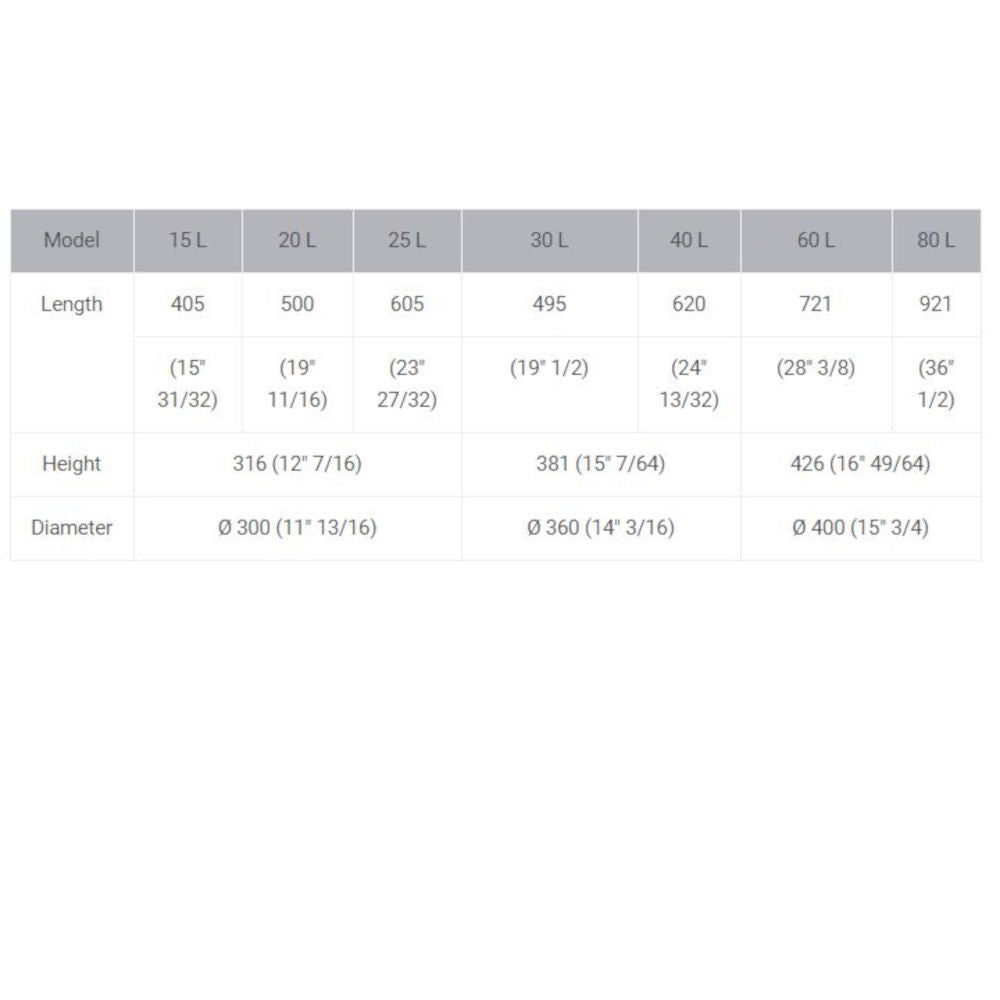

| Model | 15 L | 20 L | 25 L | 30 L | 40 L | 60 L | 80 L | ||
| Length | 405 | 500 | 605 | 495 | 620 | 721 | 921 | ||
| (15″ 31/32) | (19″ 11/16) | (23″ 27/32) | (19″ 1/2) | (24″ 13/32) | (28″ 3/8) | (36″ 1/2) | |||
| Height | 316 (12″ 7/16) | 381 (15″ 7/64) | 426 (16″ 49/64) | ||||||
| Diameter | Ø 300 (11″ 13/16) | Ø 360 (14″ 3/16) | Ø 400 (15″ 3/4) | ||||||
