Nautalift Gas Lift, 5-1/2" to 12" Compressed, 20-120lbs., 7-1/2" - 20" Extended, Spring / Shocks / Supports, Marine Grade

Mfr: Sierra / Seastar Solutions
$20.95 to $36.78
QuantityPrice
3 Reviews
Back
$20.95 to $36.78
QuantityPrice

DESCRIPTION

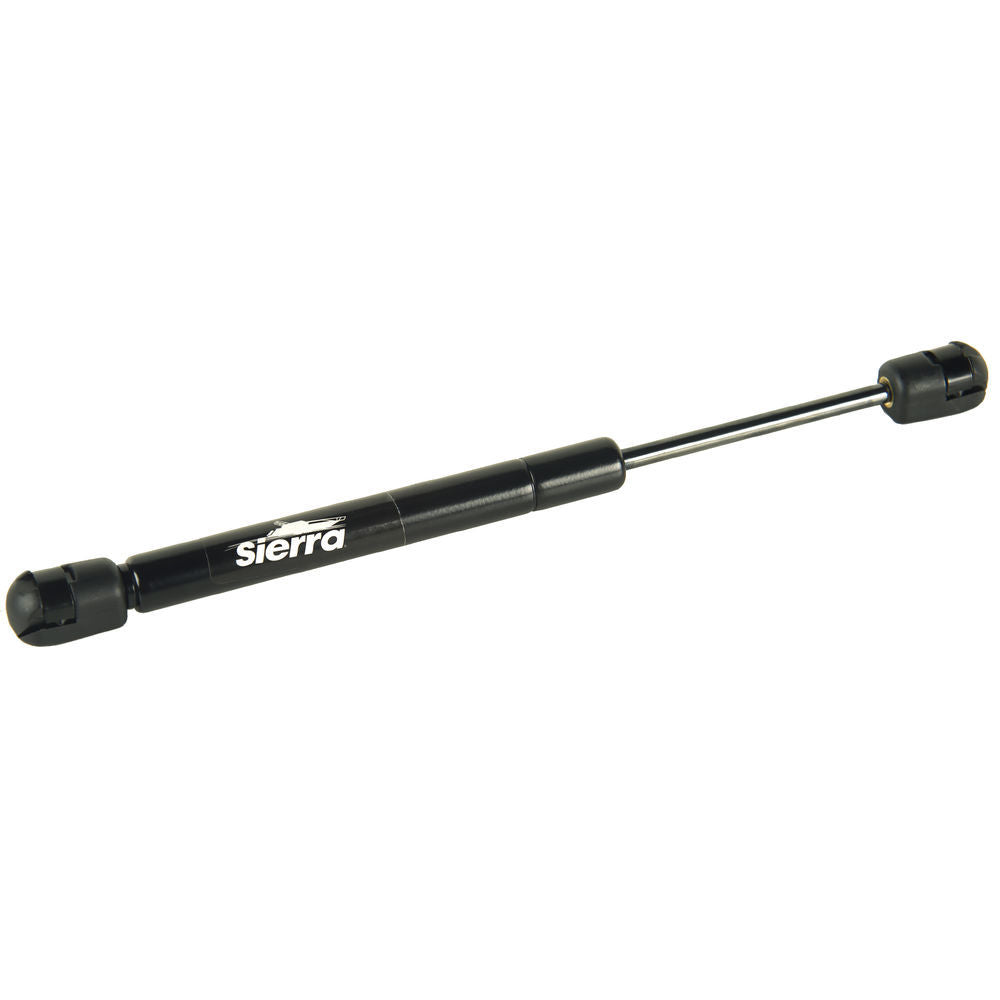

Sierra's Nautalift Gas Lift Supports are marine grade lifts designed to exact OEM replacement specs so you can trust them on your boat, dock box or other marine use.

  • Hard chrome plated shafts
  • Engineered polymer rod ends for 10mm ball fittings
  • Bronze bushings
  • Unique multi-lobe internal seals
  • ALWAYS replace gas springs in pairs



Please note that due to the numerous variations in gas lifts we are unable to provide guidance on selecting the proper lift. There are many free gas lift calculators on the web and we suggest starting there. We can always help in finding a replacement model based on the part number and manufacturer.

Trying to figure out what size lift you need for your application (cellar door, motor cover, hatch)?

Note that gas spring lifts consist of three measurements:

  • Extended Length - the overall length of the lifter with the rod out
  • Compressed Length - the minimum length with the rod pushed into the lifter
  • Rated Lift - how much the lifter will 'push' and hold safely
  • Stroke - travel distance (Extended Length - Compressed Length)



SPECS

Item #
MPN
Extended Length
Compressed Length
Rated
Nautalift Gas Lift Supports, 10" - 7" - 60#, GS62650
Item #:532729-7"_to_10"-60lbs.
MPN:GS62650
Extended Length: 10"
Compressed Length: 7"
Rated: 60 lbs.
Nautalift Gas Lift Supports, 10" - 7" - 40#, GS62640
Item #:532729-7"_to_10"-40lbs.
MPN:GS62640
Extended Length: 10"
Compressed Length: 7"
Rated: 40 lbs.
Nautalift Gas Lift Supports, 10" - 7" - 20#, GS62630
Item #:532729-7"_to_10"-20lbs.
MPN:GS62630
Extended Length: 10"
Compressed Length: 7"
Rated: 20 lbs.
Nautalift Gas Lift Supports, 7.5" - 5.5" - 20#, GS62600
Item #:532729-5-1/2"_7-1/2"-20lbs.
MPN:GS62600
Extended Length: 7.5"
Compressed Length: 5.5"
Rated: 20 lbs.
Nautalift Gas Lift Supports, 20" - 12" - 80#, GS62810
Item #:532729-12"-20"-80lbs.
MPN:GS62810
Extended Length: 20"
Compressed Length: 12"
Rated: 80 lbs.
Nautalift Gas Lift Supports, 20" - 12" - 60#, GS62800
Item #:532729-12"-20"-60lbs.
MPN:GS62800
Extended Length: 20"
Compressed Length: 12"
Rated: 60 lbs.
Nautalift Gas Lift Supports, 20" - 12" - 90#, GS62820
Item #:532729-12"-20"-90lbs.
MPN:GS62820
Extended Length: 20"
Compressed Length: 12"
Rated: 90 lbs.
Nautalift Gas Lift Supports, 7.5" - 5.5" - 80#, GS62620
Item #:532729-5-1/2"_7-1/2"-80lbs.
MPN:GS62620
Extended Length: 7.5"
Compressed Length: 5.5"
Rated: 80 lbs.
Nautalift Gas Lift Supports, 20" - 12" - 40#, GS62790
Item #:532729-12"-20"-40lbs.
MPN:GS62790
Extended Length: 20"
Compressed Length: 12"
Rated: 40 lbs.
Nautalift Gas Lift Supports, 7.5" - 5.5" - 40#, GS62610
Item #:532729-5-1/2"_7-1/2"-40lbs.
MPN:GS62610
Extended Length: 7.5"
Compressed Length: 5.5"
Rated: 40 lbs.
Nautalift Gas Lift Supports, 20" - 12" - 30#, GS62780
Item #:532729-12"-20"-30lbs.
MPN:GS6780
Extended Length: 20"
Compressed Length: 12"
Rated: 30 lbs.
Nautalift Gas Lift Supports, 15" - 9.5" - 60#, GS62710
Item #:532729-9.5"-15"-60lbs.
MPN:GS62710
Extended Length: 15"
Compressed Length: 9.5"
Rated: 60 lbs.
Nautalift Gas Lift Supports, 15" - 9.5" - 30#, GS62690
Item #:532729-9.5"-15"-30lbs.
MPN:GS62690
Extended Length: 15"
Compressed Length: 9.5"
Rated: 30 lbs.
Nautalift Gas Lift Supports, 15" - 9.5" - 20#, GS62680
Item #:532729-9.5"-15"-20lbs.
MPN:GS62680
Extended Length: 15"
Compressed Length: 9.5"
Rated: 20 lbs.
Nautalift Gas Lift Supports, 12" - 8.5" - 30#, GS62670
Item #:532729-8.5"-12"-30lbs.
MPN:GS62670
Extended Length: 12"
Compressed Length: 8.5"
Rated: 30 lbs.
Nautalift Gas Lift Supports, 12" - 8.5" - 20#, GS62660
Item #:532729-8.5"-12"-20lbs.
MPN:GS62660
Extended Length: 12"
Compressed Length: 8.5"
Rated: 20 lbs.
Nautalift Gas Lift Supports, 15" - 9.5" - 40#, GS62700
Item #:532729-9.5"-15"-40lbs.
MPN:GS62700
Extended Length: 15"
Compressed Length: 9.5"
Rated: 40 lbs.
Nautalift Gas Lift Supports, 20" - 12" - 20#, GS62770
Item #:532729-12"-20"-20lbs.
MPN:GS62770
Extended Length: 20"
Compressed Length: 12"
Rated: 20 lbs.
Nautalift Gas Lift Supports, 17" - 11" - 90#, GS62760
Item #:532729-11"-17"-90lbs.
MPN:GS62760
Extended Length: 17"
Compressed Length: 11"
Rated: 90 lbs.
Nautalift Gas Lift Supports, 20" - 12" - 120#, GS62830
Item #:532729-12"-20"-120lbs.
MPN:GS62830
Extended Length: 20"
Compressed Length: 12"
Rated: 120 lbs.
Nautalift Gas Lift Supports, 17" - 11" - 60#, GS62750
Item #:532729-11"-17"-60lbs.
MPN:GS62750
Extended Length: 17"
Compressed Length: 11"
Rated: 60 lbs.
Nautalift Gas Lift Supports, 17" - 11" - 40#, GS62740
Item #:532729-11"-17"-40lbs.
MPN:GS62740
Extended Length: 17"
Compressed Length: 11"
Rated: 40 lbs.
Nautalift Gas Lift Supports, 17" - 11" - 30#, GS62730
Item #:532729-11"-17"-30lbs.
MPN:GS62730
Extended Length: 17"
Compressed Length: 11"
Rated: 30 lbs.
Nautalift Gas Lift Supports, 17" - 11" - 20#, GS62720
Item #:532729-11"-17"-20lbs.
MPN:GS62720
Extended Length: 17"
Compressed Length: 11"
Rated: 20 lbs.
