DESCRIPTION

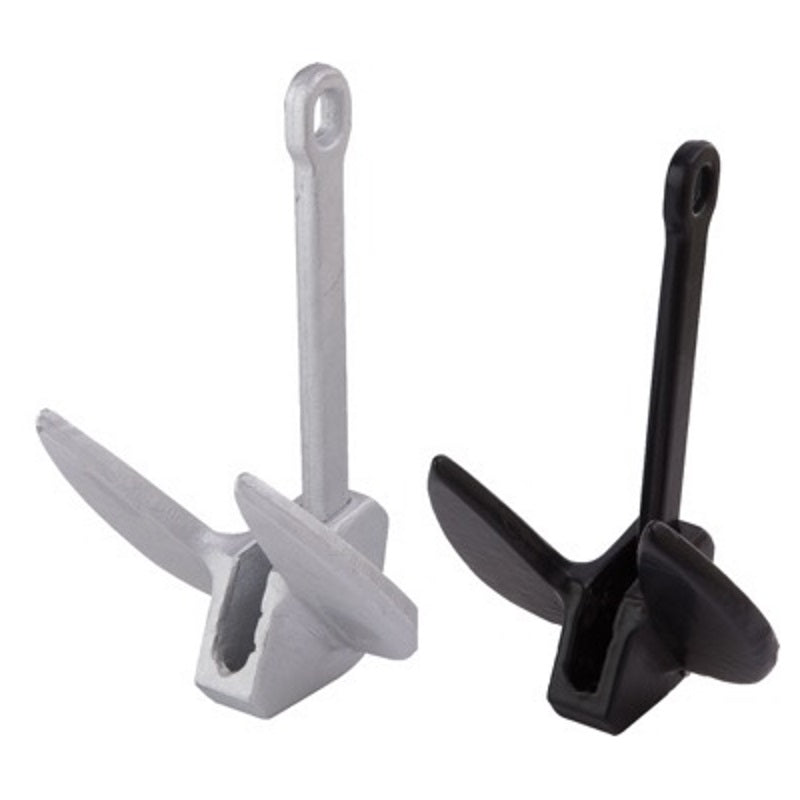

The Navy Anchor is a classic, proven design, whose performance is based on a combination of weight, and the mechanical principle of flukes to dig in and hold firm. Navy anchors work well in rocky bottoms, and also penetrate easily through weeds. Reverse action of the shank allows for quick and easy retrieval of a fouled anchor. The stock folds flat parallel to the shank for compact storage. Chain is recommended for optimum performance. Cast iron construction with painted aluminum or black vinyl coated finish. * Allow additional 1/16" - 3/32" for Vinyl Coating on all dimensions. *Weights vary due to metal and coating content. Listed weights are approximate.
SPECS
Item #
MPN
Size
Boat Length
Coating / Paint

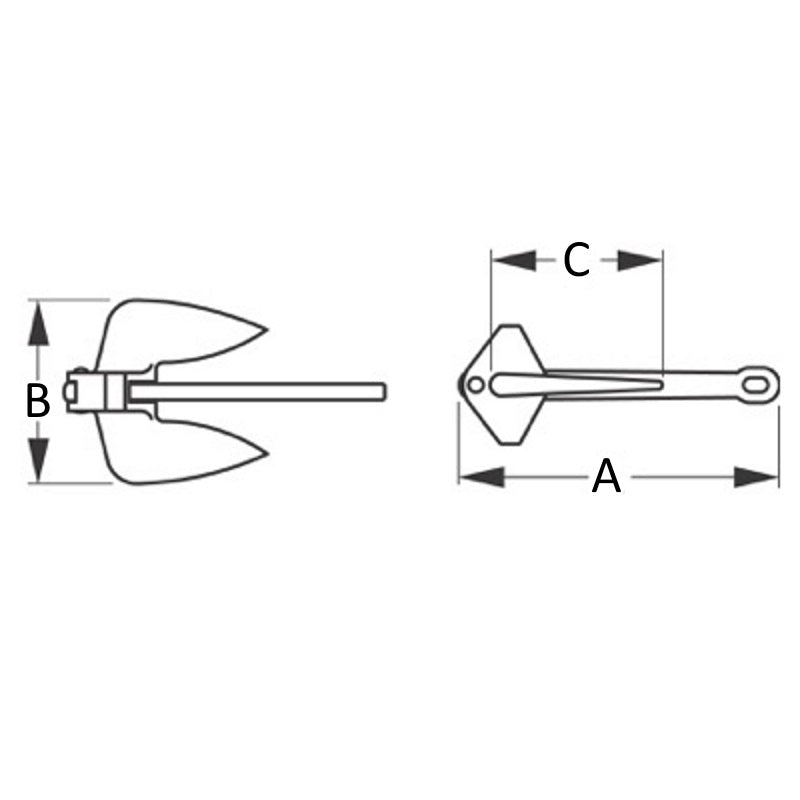

A
B
C
Weight
Sea-Dog, Navy Anchor, Cast Iron
Item #:532322-BLKVNYL-20lbs
MPN:314580
Size: 20
Boat Length: 23' - 32', 33' - 41'
Coating / Paint: Black Vinyl
A: 13-1/2"
B: 10-1/2"
C: 8-1/4"
Weight: 19.6
Sea-Dog, Navy Anchor, Cast Iron, Size 28
Item #:532322-28lbs-AL
MPN:314528
Size: 28
Boat Length: 23' - 32', 33' - 41'
Coating / Paint: Alum. Paint
A: 13-1/2"
B: 11"
C: 9-1/4"
Weight: 26.0
Sea-Dog, Navy Anchor, Cast Iron, Size 20
Item #:532322-20lbs-AL
MPN:314520
Size: 20
Boat Length: 23' - 32'
Coating / Paint: Alum. Paint
A: 13-1/2"
B: 10-1/2"
C: 8-1/4"
Weight: 21.2
Sea-Dog, Navy Anchor, Cast Iron, Size 15
Item #:532322-15lbs-AL
MPN:314515
Size: 15
Boat Length: 14' - 22'
Coating / Paint: Alum. Paint
A: 13-1/2"
B: 7-7/8"
C: 7-1/4"
Weight: 15.6
Sea-Dog, Navy Anchor, Cast Iron, Size 10
Item #:532322-10lbs-AL
MPN:314510
Size: 10
Boat Length: Under 14'
Coating / Paint: Alum. Paint
A: 13-1/2"
B: 7-3/4"
C: 7-1/4"
Weight: 11.0
