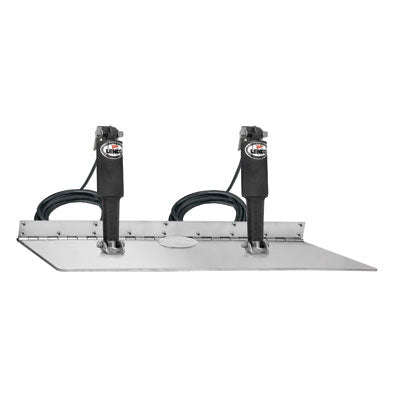

Super Strong Electric Trim Tab Kits (16" X 24" to 16" X 42") 12/24v, No Switch

$1,500.00 to $2,035.01
QuantityPrice

$1,500.00 to $2,035.01
QuantityPrice

DESCRIPTION

Lenco Super Strong Electric Trim Tab Kits with dual actuator tabs withstand the rigors and heavy use demands on sport-fishing boats, high speed cruisers and large commercial vessels. Sized from 16" X 24" to 16" X 42", all blades are 7-Gauge (4.8mm) 304 stainless steel as is all the mounting hardware.

All Super Strong Trim Tab Systems include:

  • 3/8" diameter hinge pins
  • 3.75" sacrificial anodes
  • Vandar Upper Mounting Brackets with Gland Seal
  • 10 gauge SS lower mounting brackets with 3/8" SS bolts
Each kit includes:
  • Two stainless steel trim tab blades each with two actuators
  • Actuators have 6 foot leads and Deutsch connectors
  • Upper mounting bracket with gland seal
  • Lower mounting bracket
  • All stainless steel mounting hardware

ALL trim tab kits are now shipped Without Switches. You will need to buy and fit a switch to complete installation.

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

SPECS

Item #
MPN
Tab Length x Tab Width
Volts
Gauge of Tab
16" X 24" 24 Volt Super Strong Kit - Without Switch
Item #:533482-16in-24"-24Volt
MPN:15030-101
Tab Length x Tab Width: 16" X 24"
Volts: 24 Volt
Gauge of Tab: 7
16" X 24" 12 Volt Super Strong Kit - Without Switch
Item #:533482-16in-24"-12Volt
MPN:15022-101
Tab Length x Tab Width: 16" X 24"
Volts: 12 Volt
Gauge of Tab: 7
16" X 42" 24 Volt Super Strong Kit - Without Switch
Item #:533482-16in-42"-24Volt
MPN:15033-101
Tab Length x Tab Width: 16" X 42"
Volts: 24 Volt
Gauge of Tab: 7
16" X 42" 12 Volt Super Strong Kit - Without Switch
Item #:533482-16in-42"-12Volt
MPN:15025-101
Tab Length x Tab Width: 16" X 42"
Volts: 12 Volt
Gauge of Tab: 7
16" X 36" 24 Volt Super Strong Kit - Without Switch
Item #:533482-16in-36"-24Volt
MPN:15032-101
Tab Length x Tab Width: 16" X 36"
Volts: 24 Volt
Gauge of Tab: 7
16" X 30" 24 Volt Super Strong Kit - Without Switch
Item #:533482-16in-30"-24Volt
MPN:15031-101
Tab Length x Tab Width: 16" X 30"
Volts: 24 Volt
Gauge of Tab: 7
16" X 30" 12 Volt Super Strong Kit - Without Switch
Item #:533482-16in-30"-12Volt
MPN:15023-101
Tab Length x Tab Width: 16" X 30"
Volts: 12 Volt
Gauge of Tab: 7
