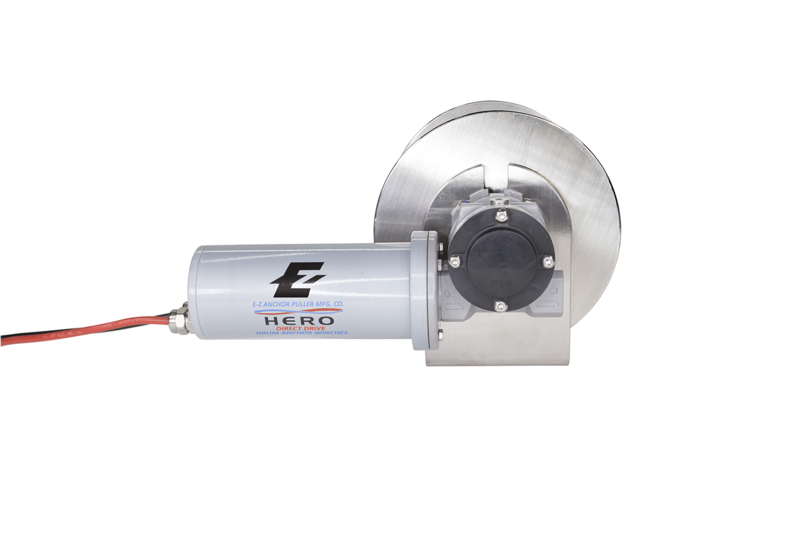

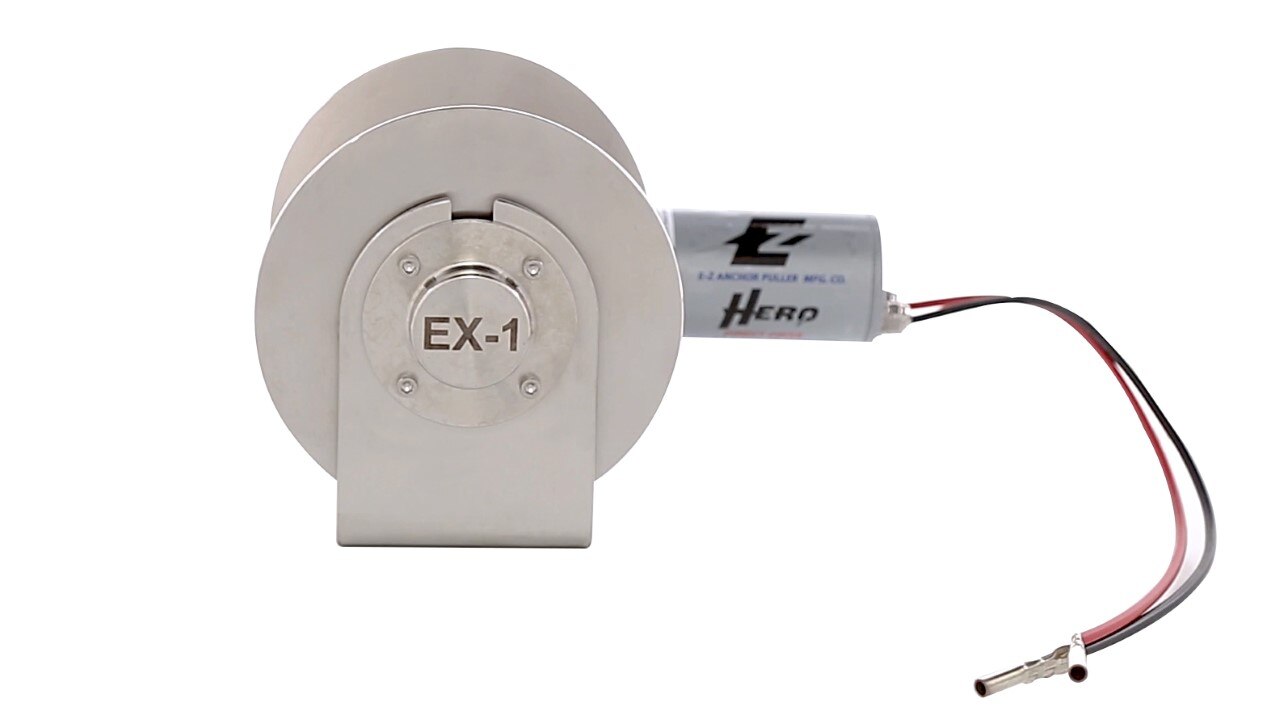

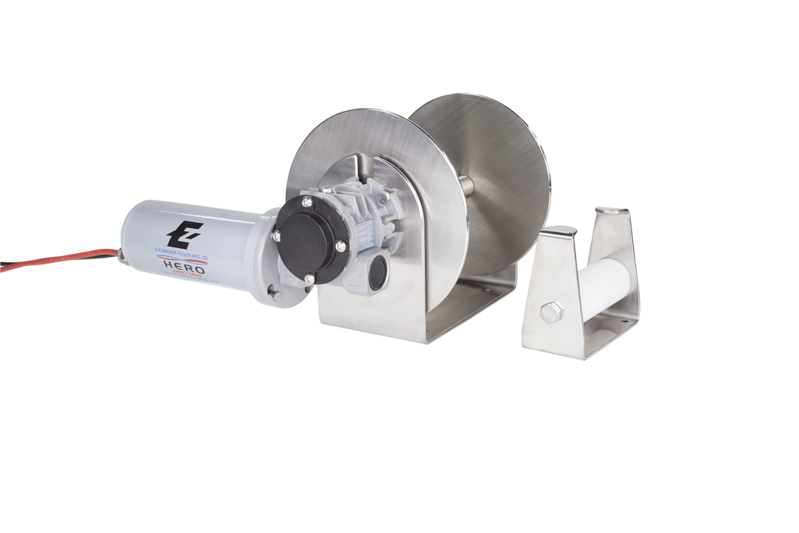

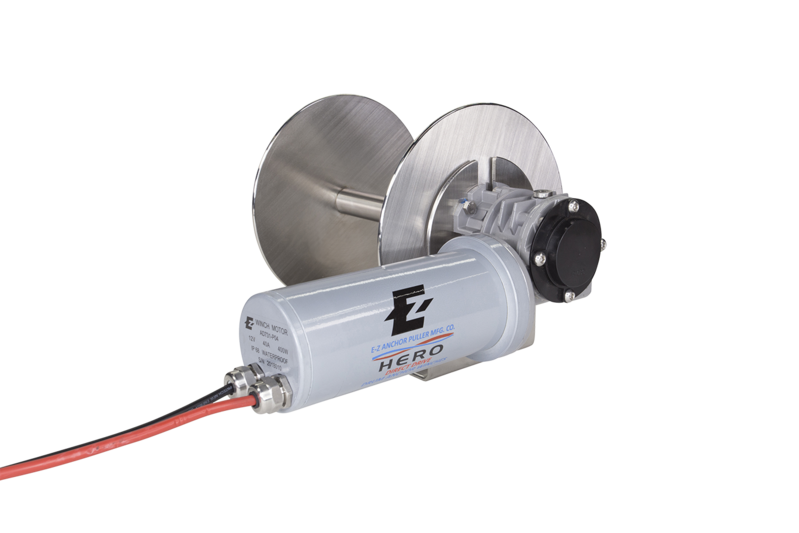

EZ Anchor Puller Hero EX-1 Direct Drive Drum Anchor Winch, Max. Pulling Load 1,000 lbs.

Description

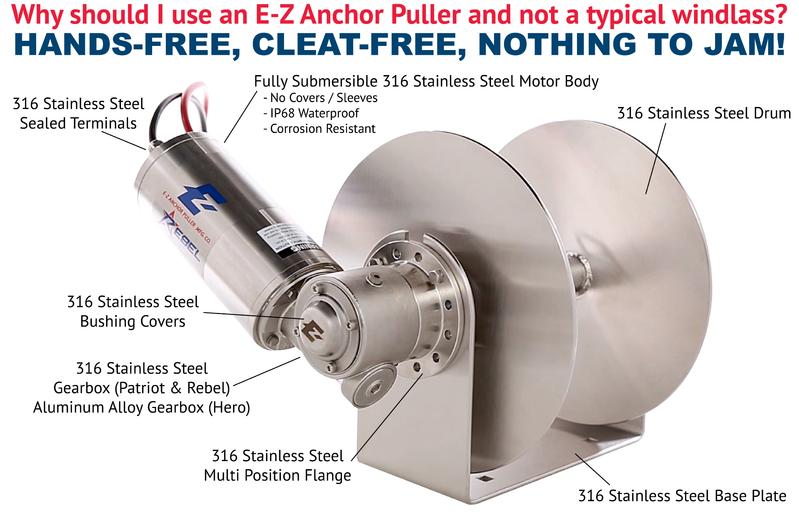

E-Z Anchor Puller Mfg. Co. is proud to introduce our new "HERO Series" line of Direct Drive (Power Down Anchor Drop) Drum Anchor Winches. The strongest most durable drum style anchoring systems available worldwide, HERO Series Drum Anchor Winches are made of 316 stainless steel construction and powder coated aluminum alloy.

The HERO series drum anchor winches raise the bar and set a new standard in anchoring systems using ultra high strength materials with efficient, simple, and robust design technology. From the company with the world's first anchor winch in 1990, we are proud to offer a 316 stainless steel spool and 316 stainless steel base plate with a powder coated aluminum alloy gear box and motor body with patented internal condensation mitigation and pre-rigged with twin leads for easy installation with a submersible water proof IP68 rating.

Deep water anchoring is a breeze with the HERO series OPTIONAL Electronic Fast Fall system. After a quick 2 second push of the lower button the patented Electronic Fast Fall controller which is an electronic voltage booster doubles the voltage which also doubles the speed of the motor allowing the anchor to fall during anchor deployment at twice the speed of the retrieval time. Once your anchor line is fully deployed you don't need to tie off to a cleat the HERO will hold the boat at anchor. To retrieve your anchor line and anchor, hold the raise button until the anchor is out of the water and against the bow roller.

All HERO Series Drum Anchor Winches are equipped with an emergency drive key release that allows the drive shaft to free spin and spool out the anchor line in the unforeseen case of power loss or faulty wiring / electronics.

Stronger & Faster than the competition, the HERO Series Drum Anchor Winches offer unmatched performance and reliability. From small recreational boats to Commercial Vessels to 55ft, there is a HERO, PATRIOT or REBEL Series Drum Anchor Winch just right for your boat and backed by our famous 7 + Life Warranty.

What's Included

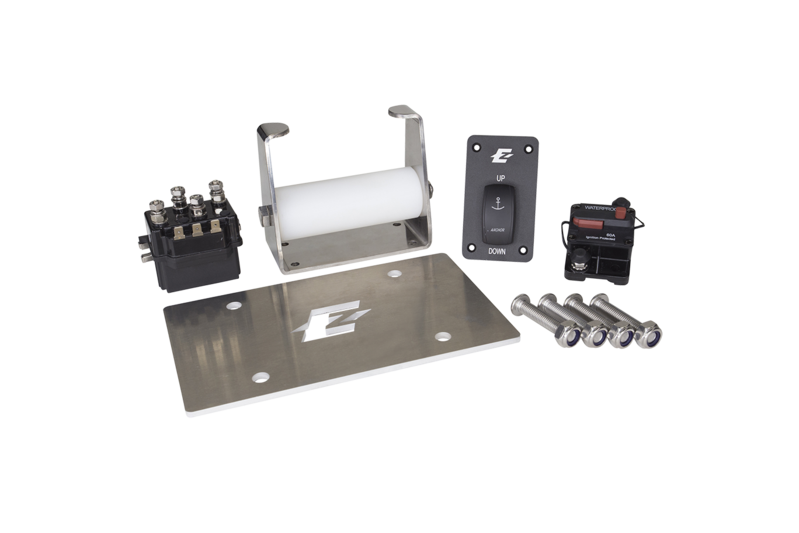

All HERO Series Anchor Winches are Supplied with:

316 Stainless Steel Spool and Base Plate and Powder Coated Aluminum Alloy Gear Box and Motor

Direct Drive - Power Down Anchor Drop

12 Volt, 480w Permanent Magnet Electric Motor

Electronics Package - (1) Forward & Reversing Waterproof solenoid, (1) Momentary Rocker Switch, (1) 40 AMP Switchable / Waterproof Circuit Breaker,

All-in-one Emergency Drive Key

1/4” - Aluminum Backing Plate

All Stainless Nuts, Bolts, & Washers Needed for Installation

Installation Instructions & Service Manual

7 + Life Warranty Information

Available Options:

Patented Electronic Fast Fall Controller with 25’ of Remote Control Cable, Waterproof Momentary Rocker Switch, and Wireless Remote

Specifications

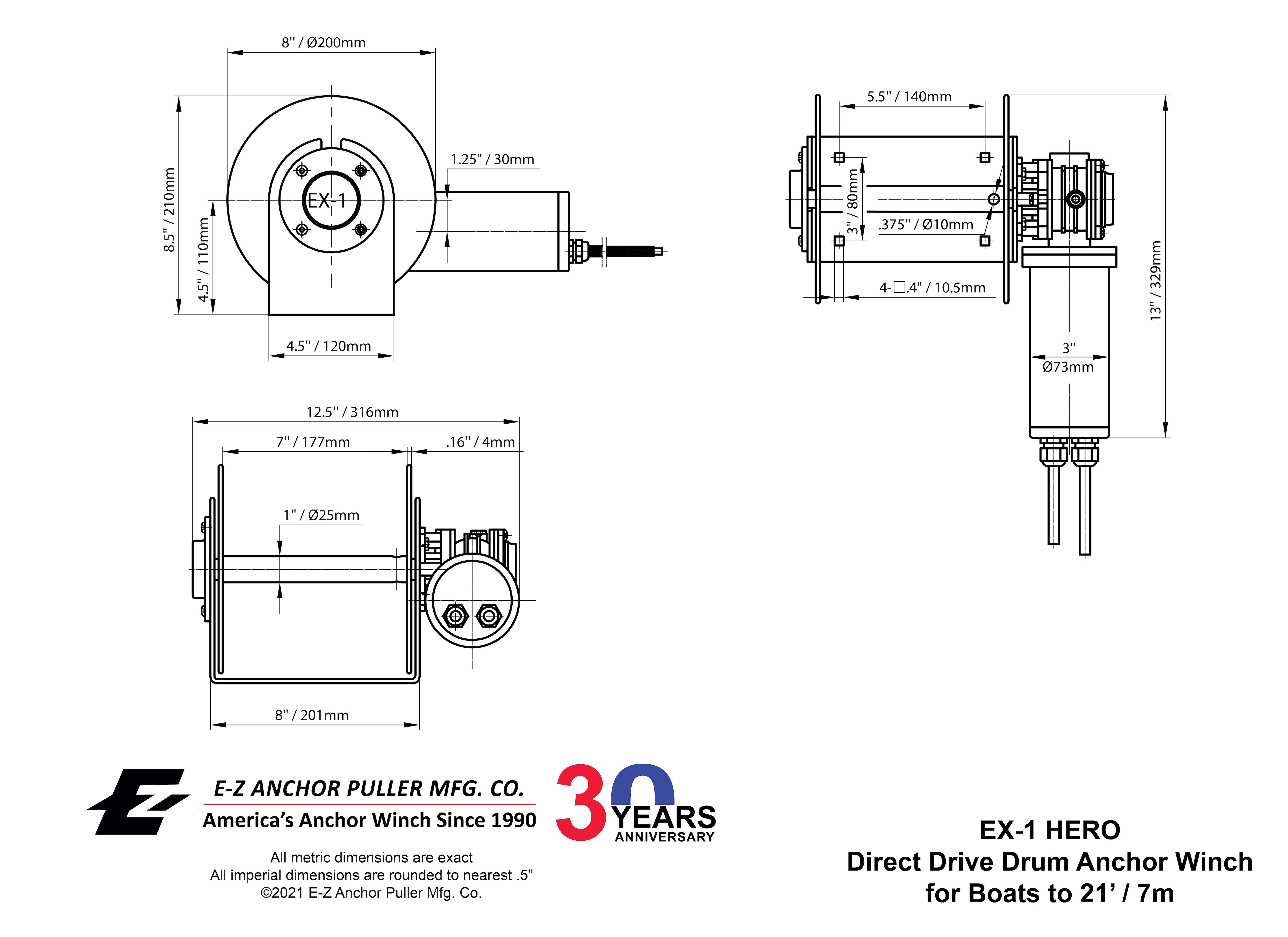

EX-1 ALUMINUM ALLOY DIRECT DRIVE DRUM ANCHOR WINCH FOR BOATS TO 21'

Vessel Length 18' - 21' / 6m - 7m

Avg. Deployment Speed 100 ft. per minute

Spool Size 7" (180mm) L x 8" (200mm) Dia.

Power Supply (Dc) 12v

Motor (Watts) 480w

Circuit Breaker 40 Amp

Net Weight 20 lb / 9 kg

Compare All Sizes

Rope Capacity Chart

EZ-Puller Hero

Operation & Installation Manual

Brochure

Returns are available within 30 days from the date you receive your order and items must be in new, resalable condition, in the manufacturer's original packaging. See Details at Go2marine Returns

WARRANTY
This section outlines the terms and conditions of the warranty offered by E-Z Anchor Puller Mfg. Co., LLC. 7 year warranty for recreational vessel usage on winch motors and gearboxes, and a 3 year warranty on solenoids, switches and circuit breakers and fast fall systems 3 year warranty for commercial and charter vessel usage on winch motors and gearboxes, and a 1 year warranty on solenoids, switches and circuit breakers and fast fall systems. We value customer service and satisfaction and will make every attempt to deal with each warranty claim fairly and respectfully. The warranty agreement you enter into when you make a E-Z Anchor Puller purchase is subject to the following conditions and limitations: The warranty period comes into effect as of the date of invoice generation/written agreement is made; E-Z Anchor Puller manufactured products are warranted to be free from defects in materials and workmanship; If your E-Z Anchor Puller product is suspected of being defective in materials or workmanship you must cease using it and contact E-Z Anchor Puller to report the fault within 7 days of noticing the defect; The warranty will include replacement of the faulty part/s, material or workmanship; The purchaser is responsible for any charges associated with removal, returning the faulty goods to E-Z Anchor Puller for warranty claim and reinstallation; Any damage sustained to any vessel, property or equipment or persons due to the installation or use of a E-Z Anchor Puller product, as far as is permitted by consumer law, is excluded from this warranty; No representative or agent of E-Z Anchor Puller has the authority to make any decisions or agreements regarding warranty with you without the prior agreement with E-Z Anchor Puller Mfg. Co .• LLC. directly; This warranty shall be limited or null and void if any of the following occur: The improper installation of a E-Z Anchor Puller, including not adhering to the installation guidelines contained within this manual; The improper and irregular maintenance, repair or service of your E-Z Anchor Puller product; The improper use or incorrect application of your E-Z Anchor Puller product; Improper modification/s made to the E-Z Anchor Puller; The warranty does not cover any loss, damage, harm or claim associated with or as a result of an accident or natural disaster. You must include a copy of the invoice/ receipt for the drum anchor winch or the boat if the drum anchor winch came installed from a dealer. Failure to register the motor's serial number will void the warranty.
